Kit Car Direct

Universal 6-Channel Wireless Steering Wheel Button Switches + Paddle Shift

Universal 6-Channel Wireless Steering Wheel Button Switches + Paddle Shift

Regular price £869.99 GBP
Regular price £939.98 GBP Sale price £869.99 GBP
Sale Sold out
Tax included.

Say goodbye to steering wheel switches with an umbilical chord.

Simple to install, the wireless receiver connects to your existing circuits and is ideally located in an unobtrusive place under your dashboard.

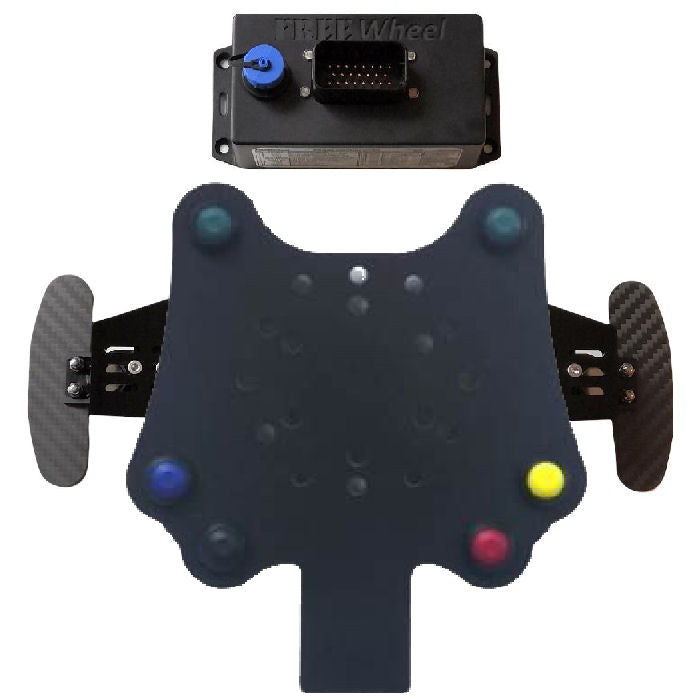

6-channel system + 2 paddles with Easyfit Transmitter which bolts straight onto your steering wheel hub and fits all standard bolt patterns on 6 x 70mm, 6 x 74mm and 3 x 50.8mm PCD steering wheels.

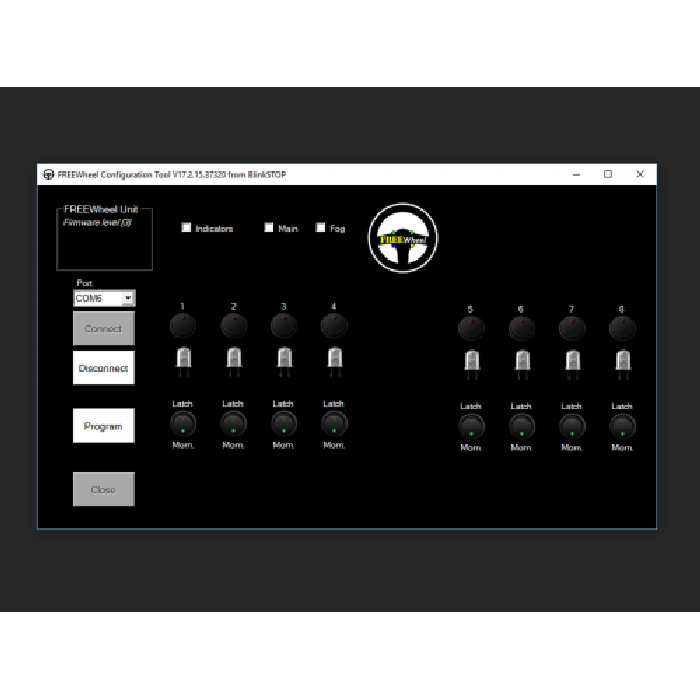

Control up to 8 channels with endless re-configuration possibilities, using the included USB programming software.

Includes internal relays rated to 15A at 12V and can be used for high- or low-side switching of loads.

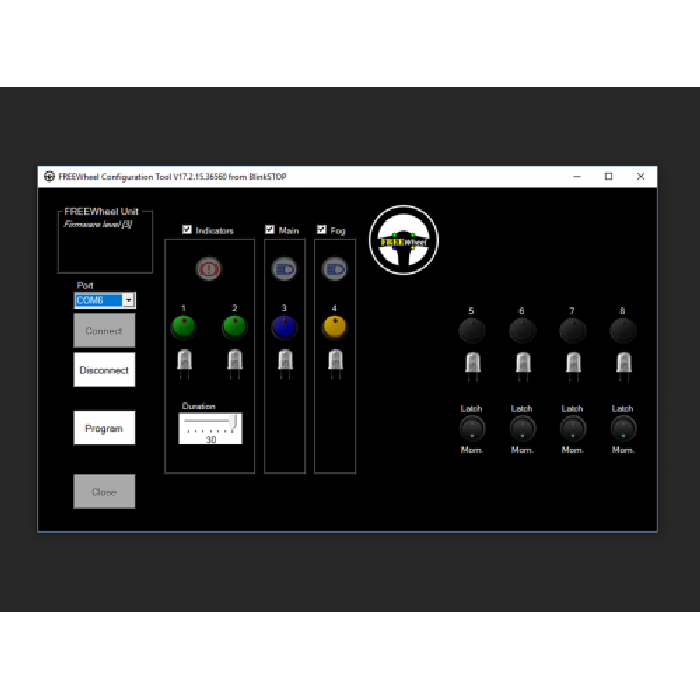

Choose any combination of smart headlight, smart indicator and IVA fog light modes or momentary and latching behaviour for each channel. Smart headlights allow you to configure the headlight switch operation to either be a latching or a momentary switch depending if your main lights are on or not.  Smart indicators allow your indicators to self cancel after a set period of time. IVA fog light mode inhibits and resets fog lights when headlights are turned off.

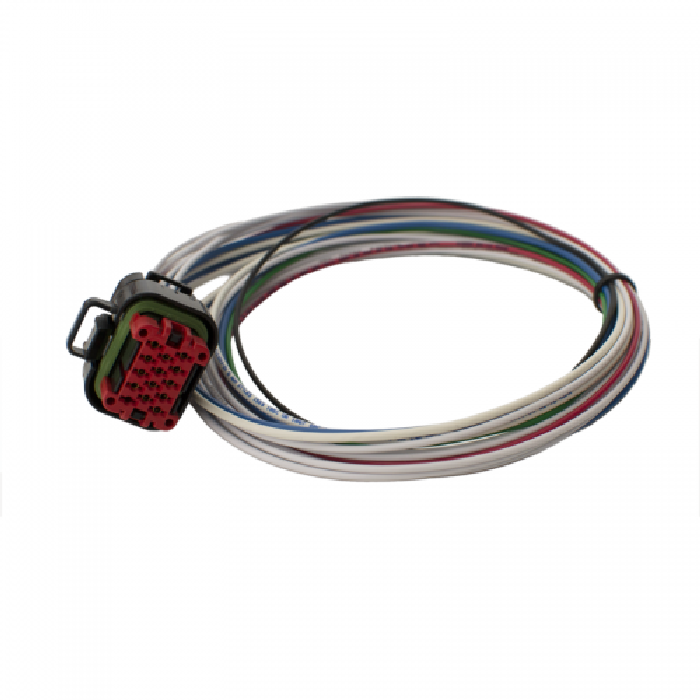

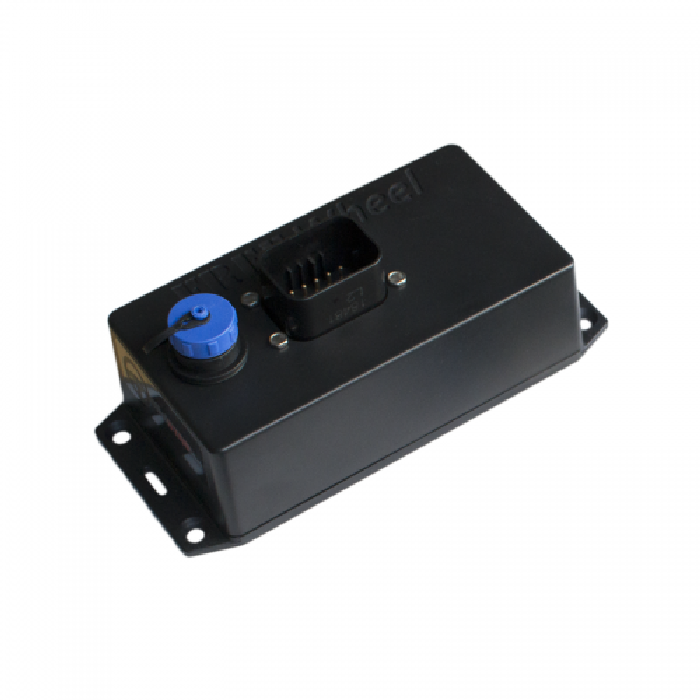

The 8 channel receiver measures 121 x 66 x 40mm and weighs just 300g and that includes our matching, custom loom and gold pin connector.

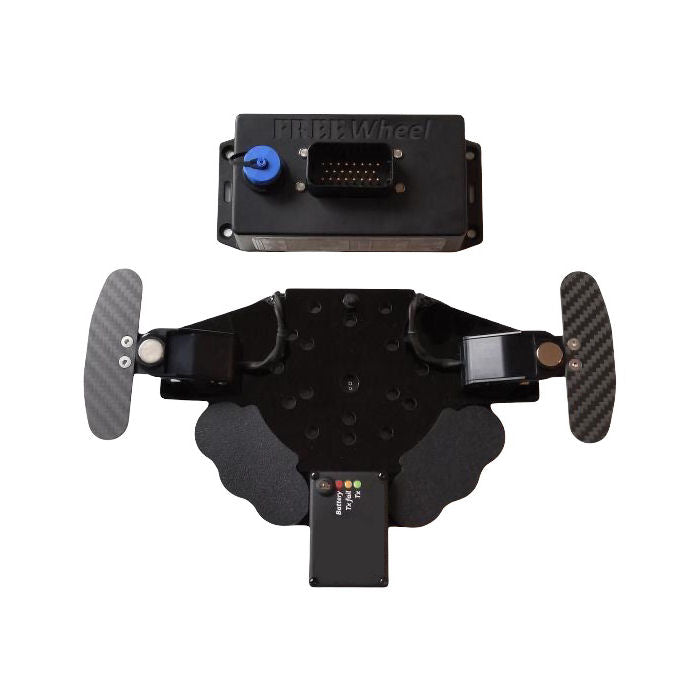

At just 176 x 154 x 19-29mm, the fully assembled Transmitter and button plate weigh just 200g including the battery!

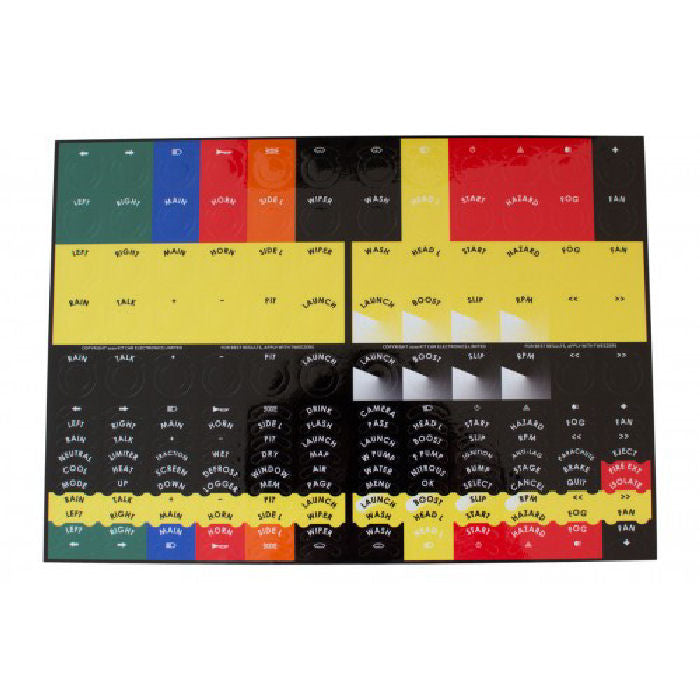

What's in the box? Easyfit Transmitter assembled to button plate with 8 soldered pushbuttons and covers, battery, our custom top quality decal sheet, 8-channel Receiver with AMPSEAL connector with 14 gold pins, matching loom, USB cable, sticker sheet, installation instructions.

As standard the push buttons are usually coloured green for the indicators, blue for the main beam / flash and red for the horn.  If you require different combinations, then please let us know after purchase.

Please Note: These are a special order item so please allow 14 - 21 working days delivery.
