Pulsar GTX2860R Gen 2 Turbo

Recommended engine displacement 1.6 to 2.5 litres. Power outputs up to 550 hp possible.
Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing shaft movement.
45.64/60.07/62mm 8 blade upgraded billet compressor wheel with extended tapered tip technology and with better flow than the 11 blade Gen 1 wheel.
Inconel 713c 54 / 47 mm 9 blade turbine wheel
Gen2 cover with integrated speed sensor port and anti surge.
0.64, 0.86 A/R T25 Inlet, 5 Bolt Outlet, 0.82 A/R dual V-BAND stainless steel turbine housing options all available
Standard or T51R mod compressor housing options available
Wastegate actuator supplied on internally gated units with compressor housing.
Compressor Inlet :3″
Compressor Outlet: 2″
Oil Feed: 7/16-24 UNF with -4an connector
Oil Drain: Std T3 oil drain flange
Water In/Outlet: M14x1.5
We highly recommended running water cooling for better durability.

Please Note : This is a special order item and has a lead time of 10 - 15 working days.

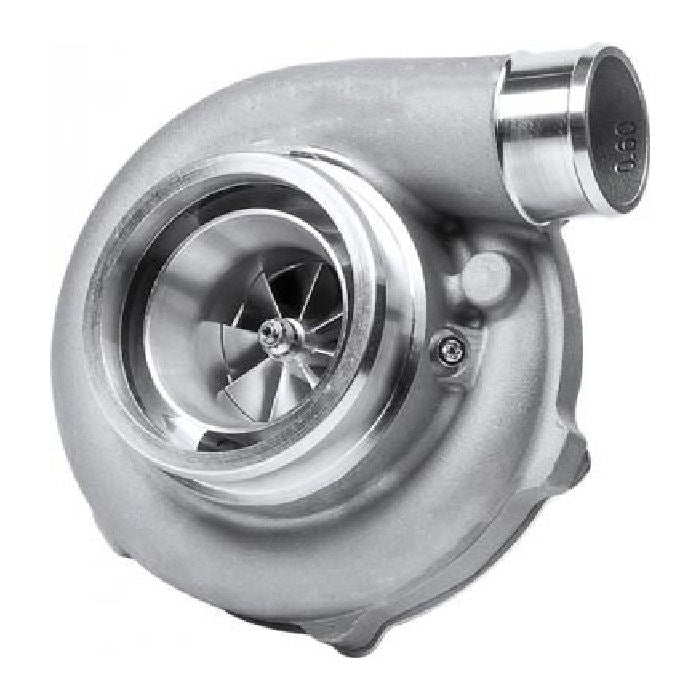

Picture is for illustration purposes only
