Pipercross PX500 Base Plate
Pipercross PX500 Base Plate
Regular price
£39.99 GBP
Regular price
Sale price
£39.99 GBP
Unit price
/
per
The PX500 range of filters is developed for twin carburettors but in a compact design for applications where space can cause an issue e.g. Motorcycle Engines, MG Midget, Metro, Mini etc.

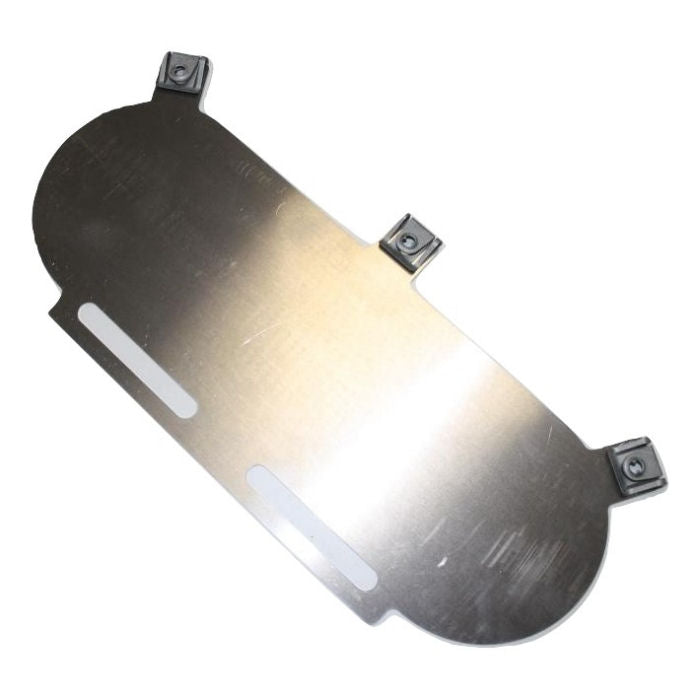

The range consists of a filter unit which utilises the Pipercross competition foam, bonded to a ring plate. This ring plate can be attached (using the supplied DZUS fasteners) to a blank base plate so you can cut the holes to suit your application. Remember to leave at least 20mm between the end of the trumpet/carburettor inlet and the inside of the filter.
Part No. | Length | Width | Height | Internal Height |
---|---|---|---|---|
C502D | 370 | 170 | 65 | 40 |
C503D | 370 | 170 | 90 | 65 |
C504D | 370 | 170 | 125 | 100 |
