Kit Car Direct

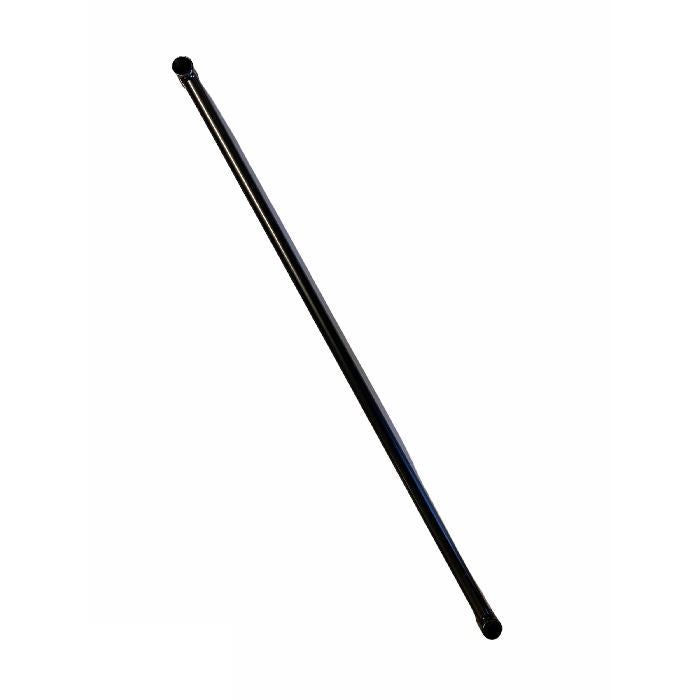

Locost Live Axle Panhard Rod

Locost Live Axle Panhard Rod

Regular price £49.98 GBP
Regular price Sale price £49.98 GBP
Sale Sold out
Tax included.

The purpose of automobile suspension is to let the wheels move vertically with respect to the body. It is thus undesirable to allow them to move forward and backwards (longitudinally), or side to side (laterally). The Panhard rod prevents lateral movement.[2] The Panhard bar is a simple device, consisting of a rigid bar running sideways in the same plane as the axle, connecting one end of the axle to the car body or chassis on the opposite side of the vehicle. The bar attaches on either end with pivots that let it swivel upwards and downwards only, so that the axle can move in the vertical plane only.

This does not effectively locate the axle longitudinally, therefore it is usually used in conjunction with trailing arms that stabilize the axle in the longitudinal direction. This arrangement is not usually used with a leaf spring suspension, where the springs themselves supply enough lateral rigidity, but only with coil spring suspensions.

Each end of the panard rod will require a standard poly bush in order to allow the panhard rod to move freely in it's position
