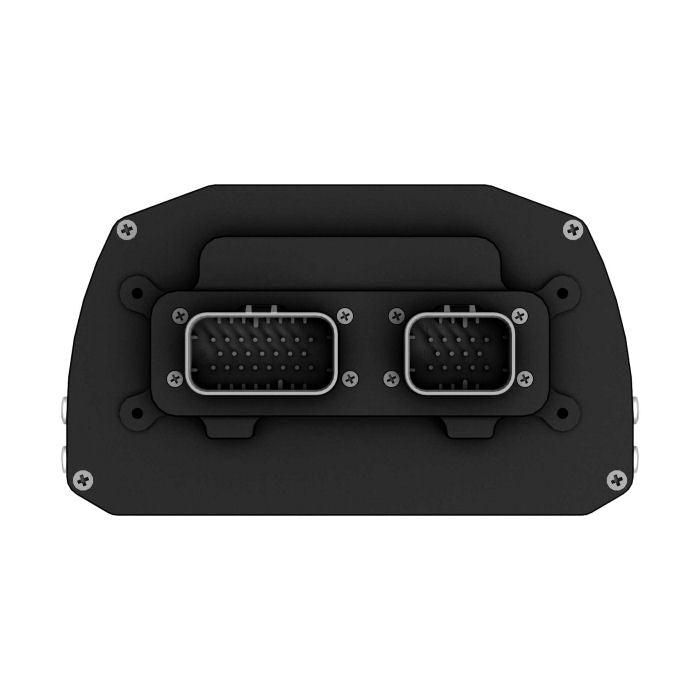

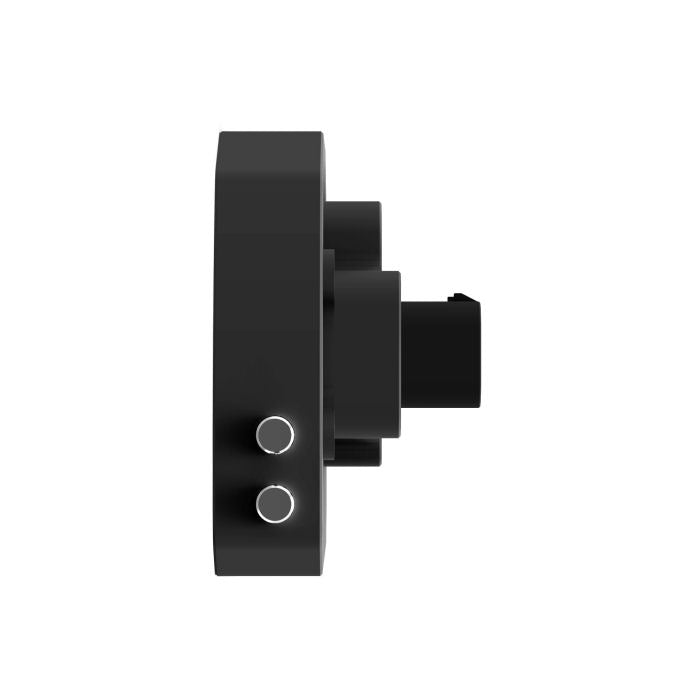

Aim Technologies MXS Strada TFT Digital Colour Dashboard - Street Icons

Aim Technologies MXS Strada TFT Digital Colour Dashboard - Street Icons

Regular price £1,499.99 GBP
Regular price Sale price £1,499.99 GBP
Sale Sold out
Tax included.

MXS Strada is the evolution of MXL Strada, one of the most widely-spread dashes on tracks and streets all over the world.
MXS Strada is a 5" color display with great visual impact, configurable to show lap times and all the info coming from the Engine Control Unit, analog/digital inputs, pre-defined math channels and - optionally - the GPS Module.
Its data sampling capability can also be incremented adding up to eight expansion modules.

High Contrast TFT Display
MXS Strada is a high contrast TFT display: its visual quality is always optimal as its ambient light sensor keeps the backlight at the best brightness levels.
The dash is of course available also in the "Street Icons" version (fuel, oil, water temp., etc.).

Watch Your Data In Pre-Configured Pages
MXS Strada shows, together with RPM scale, all the data you need, like speed, water temperature and oil pressure, laptimes and much more...
You can choose the custom pages you wish among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages is quite easy using the pushbuttons.

Flexiable Shift Lights and Alarms
The ten multicolored RGB shift lights can be customized to your liking, defining the RPM threshold for each single gear.
The same flexibility applies to the configurable RGB alarm LEDs: you can configure them in order to turn them on/off depending on analog or digital inputs, ECU values, expansion values, math channels or - optionally - GPS information.
You choose conditions and colors: select a solid alarm or flashing one - and the flashing frequency. It is also possible to configure an accompanying text message, and set the alarm priorities.

CAN Output
With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.

Digital Output
MXS Strada features a LOW SIDE type (switch to ground) digital output configurable in order to be activated/deactivated depending on the value of the analog/digital inputs or on impulses coming from the ECU.
This permits to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.

A Modular System
GPS08 Module
Thanks to GPS08 Module and Race Studio 3 software, you can immediately get laptimes and all data needed for engine tuning as well as for improving driving technique.

Channel Expansion
It permits to add 4 0-5Volt analog channels.

TC Hub
It adds 4 K thermocouples.

LCU-One Lambda Controller
Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data, lambda value and exhaust gas temperature, allows to perfectly tune the carburetion.

SmartyCam HD cameras
The on-board cameras that overlays on videos the data sampled by your logger.

Race Studio Configuration
MXS Strada is to be configured via Race Studio3: you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital output, Alarms, Shift Lights and all the expansions you need.
