Caterham Style Rear Light Cluster Coloured (Pair)

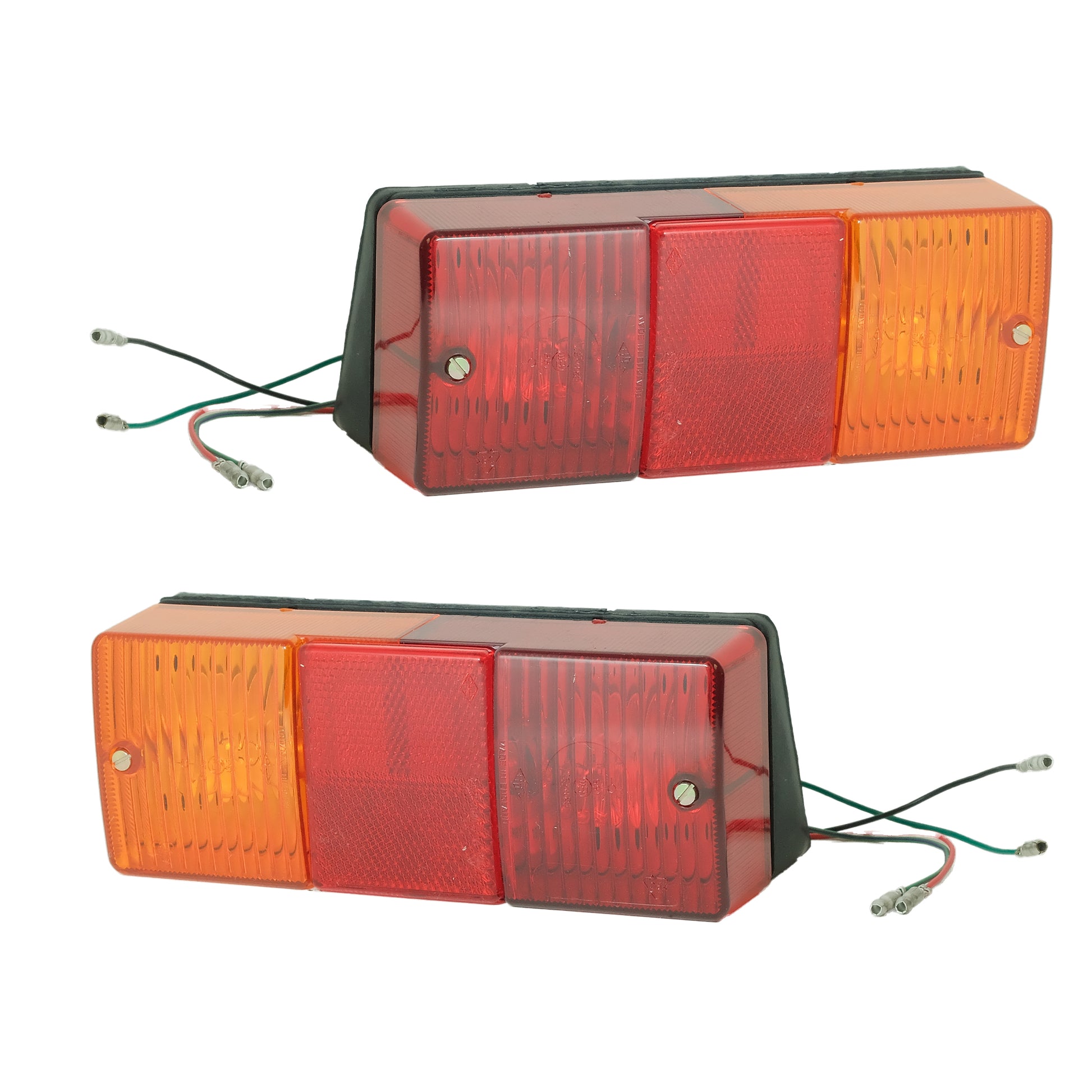

Caterham style rear light cluster (Pair) as shown in the pictures on the R500 caterham superlight.

They have an E marked on the lens.

These have the 20 degree angled rubber mounting plinth

Lamp has four wires with bullet connectors
Red Tail
Green Indicator
Green/Purple Stop
Black Earth

These lamps perform the following functions
Stop
Tail
Indicator
Reflector

The lamps and the rubber plinths are not handed

Please ensure you fit these correctly and use them correctly.



Kit consists
2 Genuine Caterham Rubber mounting plinths
2 Genuine Caterham Clear Stop & Tail, Indicator, Reflector lamps
2 Amber bulbs
2 Glass Red Stop Tail Bulbs

Technical Specification

Rubber Mounting Plinth
Construction: Rubber
Length: 191mm
Height: 75mm
Depth at highest point (Top side): 37mm
Depth at lowest point (Botton side): 6mm
Fixing to body are not provided

Lamps
Length: 190mm
Height: 72mm
Depth: 37mm
E marked
Bulbs fitted: YES
Connector system Bullet Connectors

please note delivery time on these is around 3 weeks
